Polystar Heat Sealers - The Specialist for Laminates



Due to the number of possible variations, please call us if you have any queries.or contact us though the contact form

Polystar Heat Sealers are the gold standard in heat sealing. The specialist for sterile film sealing. Whether see-through flat pouches or pouches with gusset or paper autoclave bags.

Controlled sealing processes according to DIN EN ISO 11607-2

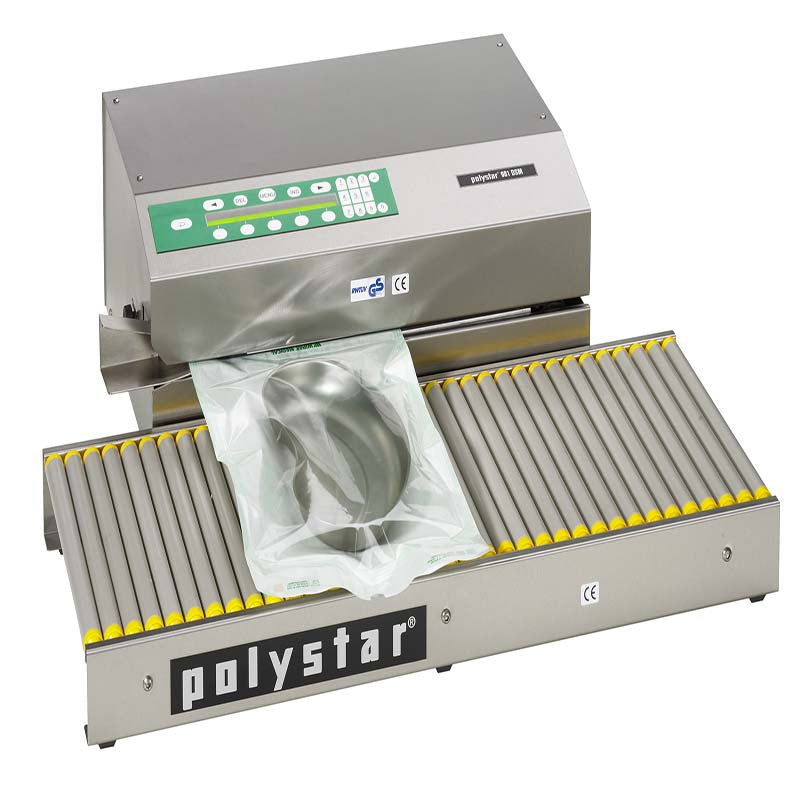

Wherever validated sealing processes are needed we offer the Polystar® Continuous Sealing machines series 981 DSM.  Closing, recording and printing (as an option) is a simple streamlined process. Define all important sealing parameters using the alpha-numerical keyboard and monitor all sealing processes with the In-Process-Check at a glance.

The sealing processes are printed directly on the package or stored on an USB memory stick or via RS232 interface on your PC.

Features:

• Adjustable temperature 50 to 199° C
• Crimp seal width of 15mm
• Audible and visual warning messages when exceeding the defined tolerances.
• casing, table and roller conveyor made of stainless steel
• seal speed of 8,5 m/Min. (+/- 5%)
• constant contact pressure 100 N (+/- 5%)temperature tolerance: (+/- 5%)
• automatic monitoring of sealing parameters through In-Process-Check
• documentation by printing or storing on an USB memory stick
• automatic start/stop of transport belts
• digital piece counter
• additional available with table, roller conveyor and dot matrix printer

981 DSM - MC 2017

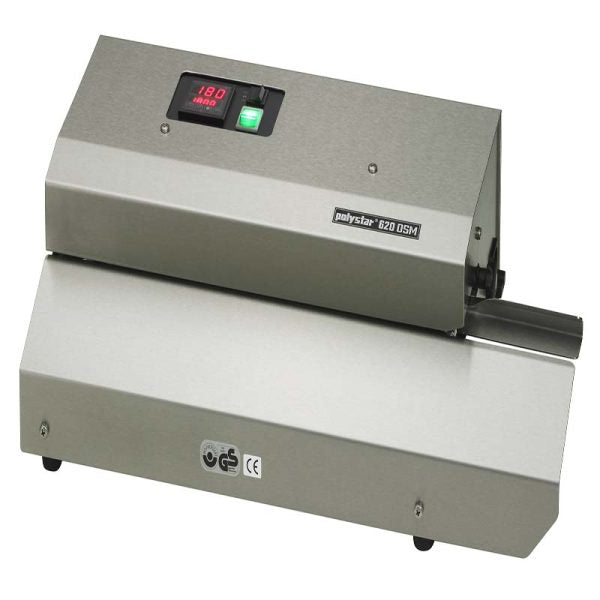

The universally applicable polystar® 620 DSM continuous sterile film sealing machine keeps its promises. The material to be sealed runs at a speed of 6,7 m per minute through two thermal jaws and is immediately sealed under pressure from two crimp rollers.

• Runs at a seal speed 6.2m/min,  pressure adjusts automatically to the material used so that not only the 12 mm broad seams are absolutely secure but also an optimum peel effect can be ensured.
• Temperature can be varied between 100 and 250° C.
• Quality casing made of stainless steel.

Features:

• digital thermostat
• accuracy of temperature +/- 2 %
• seal speed 6,7 m/min.
• NEW Technology: Now equipped with step motor!
• 12 mm wide crimp seam width
• casing and table made of stainless steel
• engine of low noise
• “GS” approved and “CE” conform

620 DSM - MC 2018

Complimentary products:

Stericlin Paper Laminate Pouches

Order information:

Code	Description	Ctn Qty
150252	981 DSM Heat Sealer	1 pc
150253	981 DSM Heat Sealer with printer	1 pc
3575001	620 DSM Heat Sealer - Right Hand Feed	1 pc
3575002	620 DSM Heat Sealer - Left Hand Feed	1 pc
