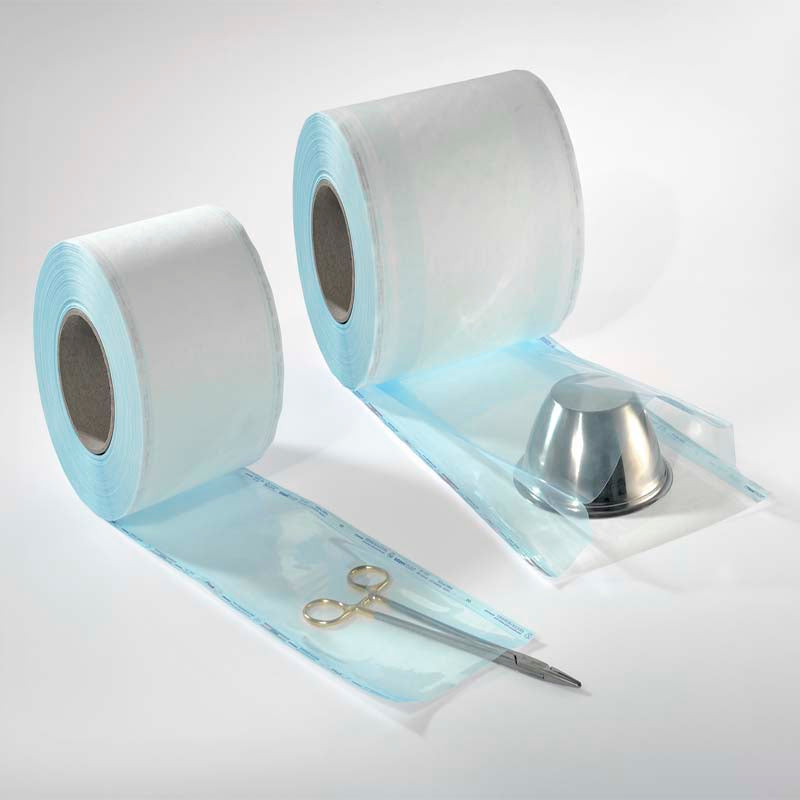

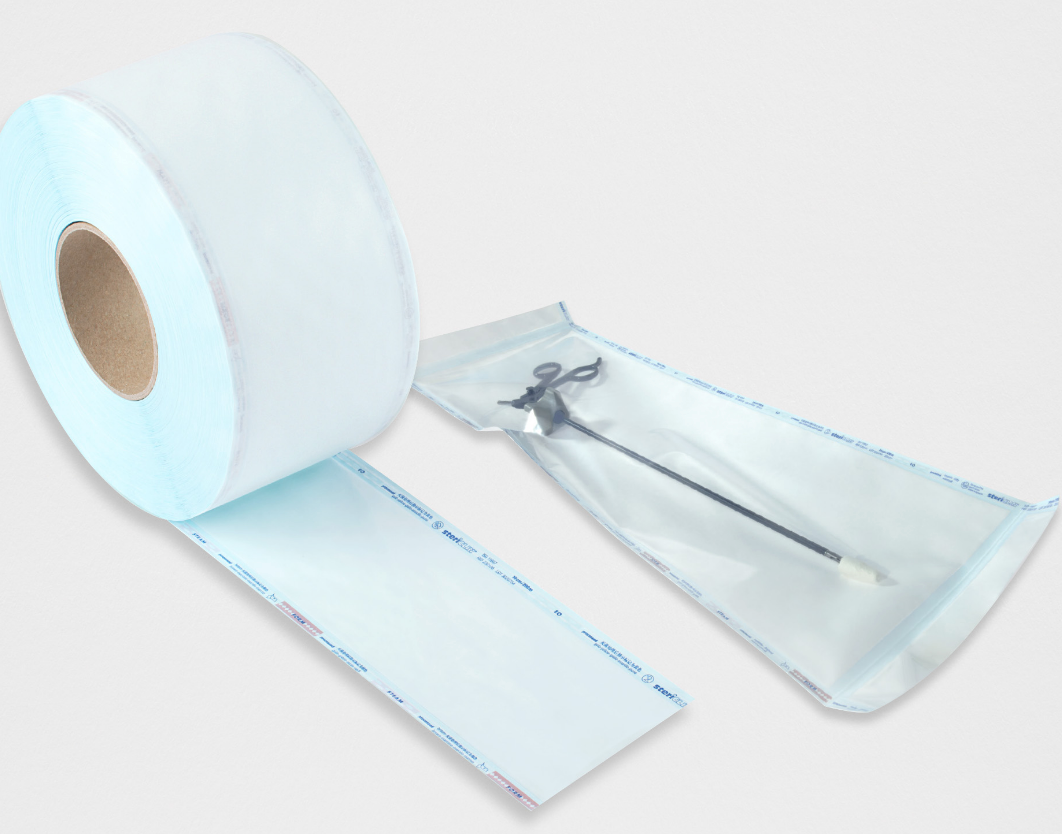

Paper Laminate Rolls - Flat

stericlin® – Medical technology “Made in Germany” See through flat reels - made of paper and film:

CE-kitemark is printed on the outer carton: DIN EN ISO 11607 and DIN 868-5, ARTG No. 135955

Construction: 70 g/m² sterilization paper conforming to EN 868-3 and DIN 58953, parts 2 and 6.

• light blue tinted transparent film Polyester / Polypropylene (PETP/PP).
• non-toxic STEAM, E.T.O.-GAS and FORMALDEHYDE indicators at intervals of 135 mm
• Side seal seam consists of three parallel seal lines (grooved seal seam). The minimum width of the seal(s) is 6 mm. In grooved seals the sum of the rib width of ribs is minimum 6 mm.

Printing details: Indicators, description / size, article Number and batch Number after the backslash, manufacturer and brand name are printed onto the paper, covered by the seal.

Method of sterilization: Steam, E.T.O.-gas, formaldehyde - not for gamma-rays or plasma-Sterilization!

Sealing: For see-through reels commercial continuous sealing devices are most suitable. The sealing temperature should be in the range of 175°- 200°C. The correct peel direction is printed on the see-through pouch or see-through reel to ensure its safe, fibre-free opening.

Substances:Our see-through pouches or reels do not contain: latex, PVC, bisphenol A, colophony, TSE/BSE risk materials, SVHC substances and phthalates. Indicator inks are free of heavy metals.

Method of use:

STERICLIN® see-through reels should be cut, according to the item to be packed. Make a bottom seal right at the end of the tube. Fill the pouch and seal at the top end leaving a peel tab of 15 to 20mm. A free space of at least 3 cm from the seal area should be maintained to avoid stress on the seal. To remove content peel apart the film and the paper.

Features:

• Non-toxic steam-, E.T.O.-gas- and Formaldehyde- indicators are placed outside the filling area – no danger of migration of indicator ink onto sterile goods.
• REF and LOT-No.
• REF and LOT-No. inside core QC-label with batch-Number etc.
• Reference to standard and size of product.
• Peel direction for opening printed at regular intervals.
• ARTG No. 135955

VP LAMINATE RANGE 2017

Complimentary Product:

Laminate Reel Dispenser with Cutter

Order Information:
